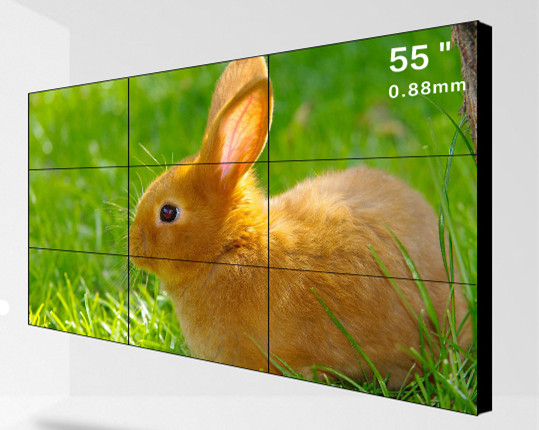

55 "0.88mm splicing screen single piece splicing unit size: 1210.51*681.22mm, the product uses the original LG LCD panel, high resolution, moderate brightness (low light 520, high light 700cd/㎡), high contrast (4000:1), high color, etc., to ensure a perfect display effect.
液晶拼接屏.jpg" alt="55寸0.88液晶拼接屏.jpg" src="/Data/lianhengsheng/upload/image/20220620/6379135866674162463837446.jpg"/>
♦ The splicing unit adopts unique OPS modular design, which is convenient for after-sales repair and maintenance.
♦ Support Chinese, English and other multi-language menu operation department Yu, humanized man-machine interface, to meet the needs of different customers.
♦ Support a variety of value number interfaces to meet the needs of users for different input value numbers: USB, DP, HDMk DVU RJ45, etc.
♦7x24 hours uninterrupted continuous operation, life up to 70,000 hours.
♦ The use of professional color calibration technology, through this technology, in addition to the still picture for color calibration, but also to the motion picture for color calibration, to ensure the accurate and stable screen output.
♦ Intelligent temperature control system, using double air flat design, to ensure that the internal temperature is within 55 degrees, more safe to use.
♦ Deinterlace processing technology, eliminate flicker; Deinterleaving algorithm to eliminate "sawtooth"; Dynamic interpolation compensation, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling and other international leading technology processing.
♦ HD resolution, single control can support 1920*1080P HD screen.
♦ Industrial panel, splicing can be any combination (MXN), the maximum support of 15x15 unit splicing, line-by-line input value number, can be accurate to 1 pixel segmentation control.
| Name | LCD splicing screen | |
| Liquid crystal panel | LCD screen size | 55 |
| Resolution | 1920x1080 | |
| Splicing gap | 0.88mm | |
| luminance | 500 cd/m* (typ.) /700 cd/m*(typ.) | |
| Contrast ratio | 4000;1 (typ.) | |
| Response time | 8ms (typ.) | |
|
Pixel spacin |
0.372mm x 0.372mm (H xV) | |
|
Visual Angl |
Viewing angle free (R/L178 (Min.), U/D178 (Min.) | |
|
Life span |
70,000 hrs (min.) | |
|
Color saturatio |
0.72 | |
| Chroma | 8bit, 16.7 Million colors | |
| Input/output port | USB | *1 |
| I/O Interface | Displayport | *1 |
| HDMI | *2 | |
| VGA | *1 | |
| RJ45 | *1 | |
| DVI | *1 | |
| Video characteristic | Display mode | Standard, soft, user，Normal, Soft, Users, Dynamic |
| 3D digital dressing filter, 3D image motion noise reduction, 3d motion adaptive comb filter, etc | ||
| Menu language | OSD | En/ brief /Etc.(multi-language support) |
| Power source | Input voltage | Ac100V-240V, 50-60 Hz |
| Rated power consumption | ≤220W | |
| Bide one's time | ≤O.5W | |
| Environment | Operating temperature | 0℃~40℃ |
| Storage temperature | -20℃~55℃ | |
| Storage humidity | 10%-90% RH Non-Condensing | |
| Working humidity | 20%~80% RH Non-Condensing | |
| Maximum usage time (hours/day) | 24 hours | |
| Other | Internal fan | 80*80mm |
| Power (AC) input | *1 | |
| Power switch | *1 | |
| Structure | Net weight | Approx. 33 Kg |
| Closing weight (carton/wooden case) TBD | Approx. 82 Kg | |
| Carton) | ||
| Bare machine Dimensions (WxHxD)(MM) | W:1432.4 | |
| H :807.62 | ||
| D:125 | ||
| Housing material | NCT | |
| Case color | Black | |
